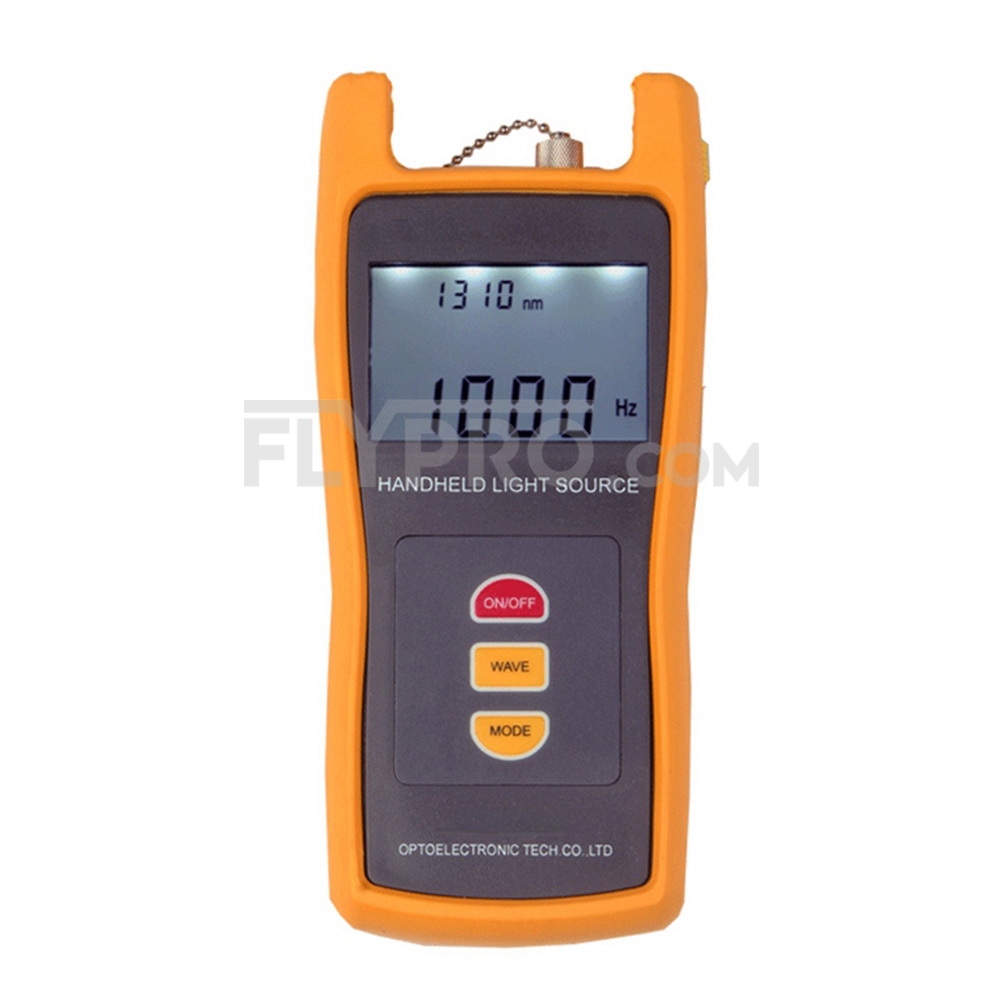

OLS-109 Handheld Fiber Optical Light Source (1310/1550nm) with 2.5mm FC/SC/ST Connector

Name: OLS-109 Handheld Fiber Optical Light Source (1310/1550nm) with 2.5mm FC/SC/ST Connector
Brand: FLYPRO
SKU: 152462
Price: 101.79 USD
Availability: InStock
Rating: 0.0 (0 reviews)

PN: OLS-109

SKU: 152462

#5537

US$101.79

Type:: 1310/1550nm; More +; Less -

Availability: In stock

30 Days Free Refund & Return

Lifetime Technical Support

Payment method

Inquire with us

Qty:

Overview
Reviews

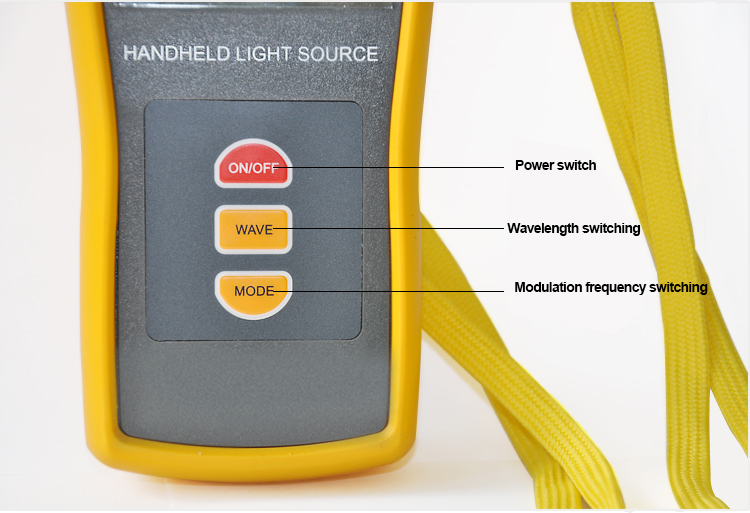

OLS-109 Fiber Optical Light Source

OLS-109 optical light source is a hand-held optical light source that provides 1310nm and 1550nm dual-wavelength laser output for single mode fiber measurements. Together with an optical power meter is perfect for optical engineering applications. Also the OLS-109 features good appearance, good touch feeling and considerate humanity design to meet the user's greatest needs.

Wavelengths (nm)	1310/1550	Emitter Type	FP-LD or LED (others please specify)
Typical Output Power (dBm)	-7dBm for LD and -20dBm for LED	Spectral Width(nm)	≤10
Output Stability	±0.05dB/15mins or ±0.1dB/ 8hours	Modulation Frequencies	CW / 270Hz / 1KHz / 2KHz

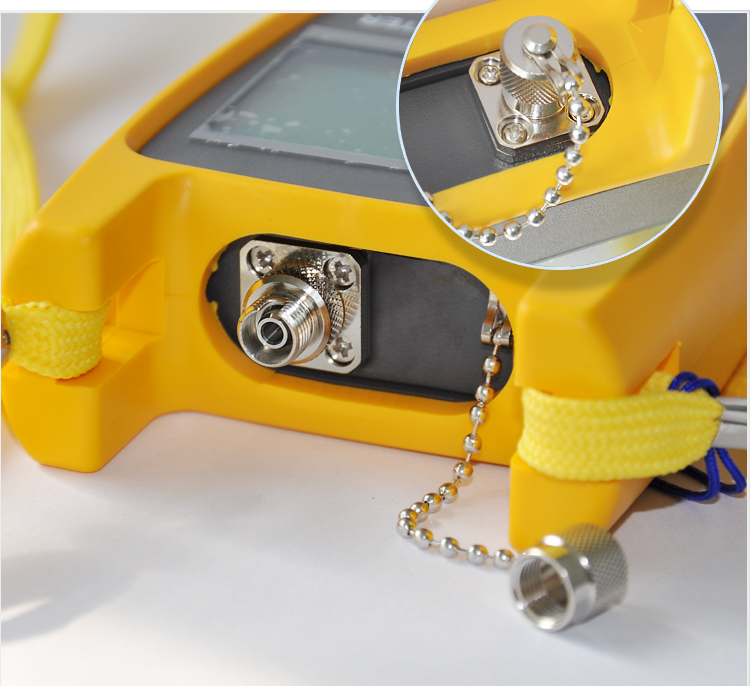

Optical Connector	2.5mm FC/SC/ST	Power Supply	Alkaline Battery (3 AA 1.5V batteries)（Battery not included）
Operating Temperature	-10~+60°C	Storage Temperature	-25~+70°C

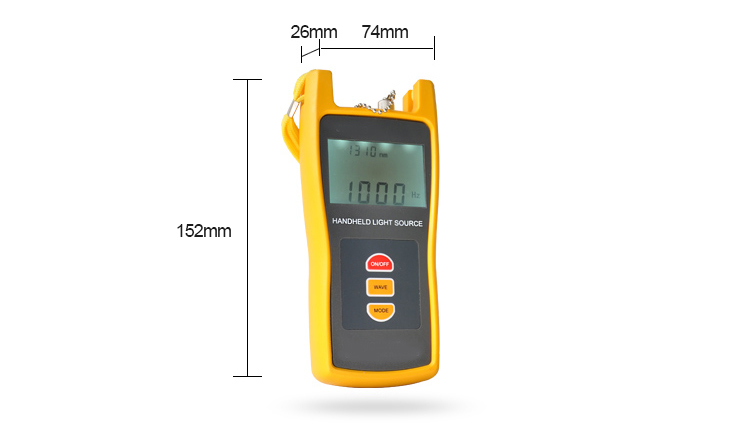

Dimension (mm)	152x74x26	Weight (g)	180

Quality Assurance

Excellent quality is the foundation of FLYPRO' s survival and development. Our operation team are experts with many years' experience in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
