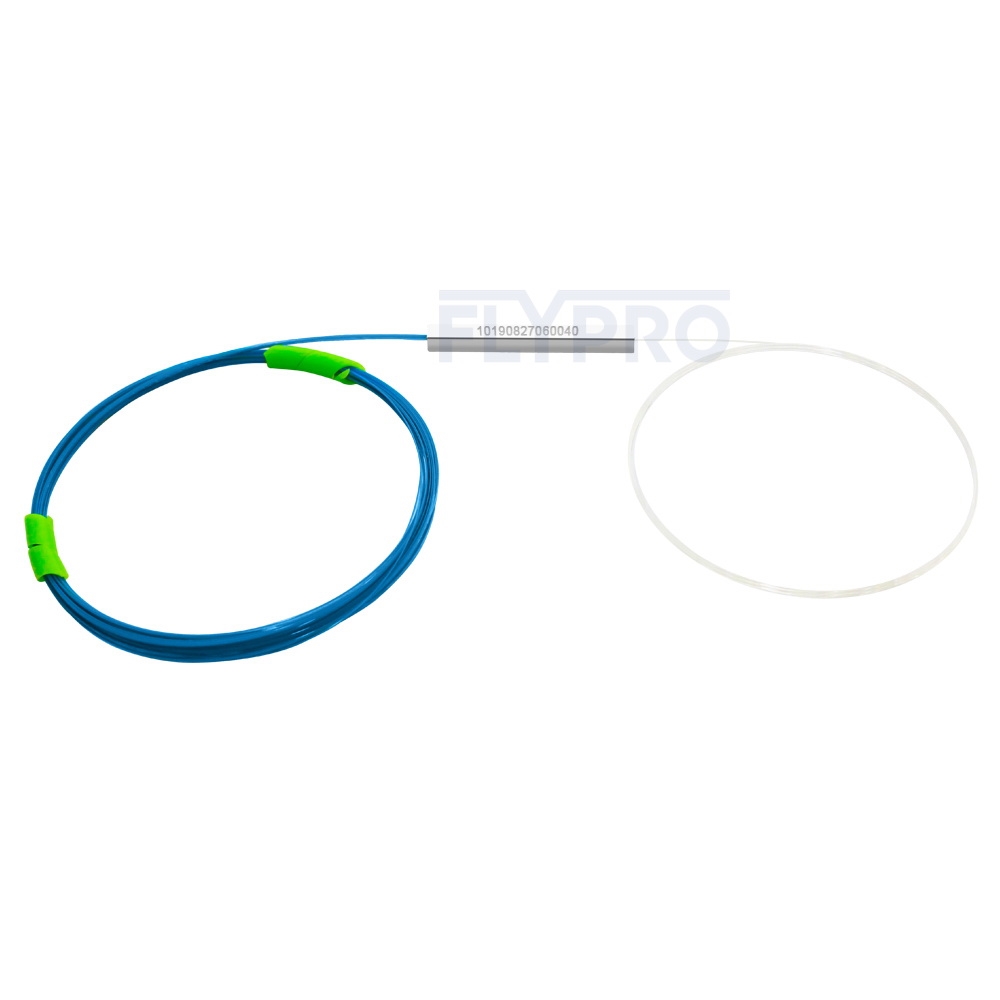

1x4 PLC Fiber Splitter, Steel Tube, Bare Fiber 250μm, No Connector, Singlemode

Name: 1x4 PLC Fiber Splitter, Steel Tube, Bare Fiber 250μm, No Connector, Singlemode
Brand: FLYPRO
SKU: 115212
Price: 4.99 USD
Availability: InStock
Rating: 0.0 (0 reviews)

PN: PLC-104-ST-250-015

SKU: 115212

#53

US$4.99

Type:: 1x2; 1x4; 1x8; 1x32; More +; Less -

Availability: In stock

30 Days Free Refund & Return

Lifetime Technical Support

Payment method

Inquire with us

Qty:

Overview
Reviews

1X4 Bare Fiber PLC Splitter, Singlemode, 250μm Fiber, No Connector

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

Bare fiber splitter is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument and WDM system, which minimizes the space occupation. It is relatively fragile on fiber protection and need a complete protection design on carrying box body and device.

Product Details

Package Style	Steel Tube, Bare Fiber	Configuration Type	1x4
Fiber Type	Singlemode G.657A1	Connector Type	None
Input/Output Fiber Diameter	250μm	Input/Output Fiber Length	1.5m
Insertion Loss	≤7.3dB	Return Loss	≥50dB
Loss Uniformity	≤0.8dB	Directivity	≥55dB
Polarization Dependent Loss	≤0.3dB	Temperature Dependent Loss	≤0.5dB
Wavelength Dependent Loss	≤0.3dB	Operating Bandwidth	1260~1650nm
Split Ratio	50/50	Operating/Storage Temperature	-40~85°C
