OPM-205A Handheld Optical Power Meter(-70~+6dBm) with 2.5mm FC/SC/ST Connector

Name: OPM-205A Handheld Optical Power Meter(-70~+6dBm) with 2.5mm FC/SC/ST Connector
Brand: FLYPRO
SKU: 111496
Price: 53.88 USD
Availability: InStock
Rating: 0.0 (0 reviews)

PN: OPM-205A

SKU: 111496

#12040

US$53.88

Availability: In stock

30 Days Free Refund & Return

Lifetime Technical Support

Payment method

Inquire with us

Qty:

Overview
Reviews

OPM-205A Optical Power Meter

The OPM-205A optical power meter is designed and developed by FLYPRO independently, which sets many functions in one. You can use it for both absolute optical power measurements and relative loss measurements, and you will enjoy its ingenious appearance, wide range of power measurement, high accuracy and user self-calibration function.

Part Number	OPM-205A	Wavelength	800~1600nm
Detector	InGaAs	Measurement Range	-70~+6dBm
Uncertainty	±5%	Calibrated Wavelength	850/1300/1310/1490/1550/1625nm
Resolution	0.01dB	Optical Connector	2.5mm FC/SC/ST Connector
Power Supply	Alkaline Battery (3 AA 1.5V batteries)（Battery not included）	Relative Humidity	0 to 95% (non-condensing)
Operating Temperature	-10 ~ +60 °C	Storage Temperature	-25 ~ +70 °C

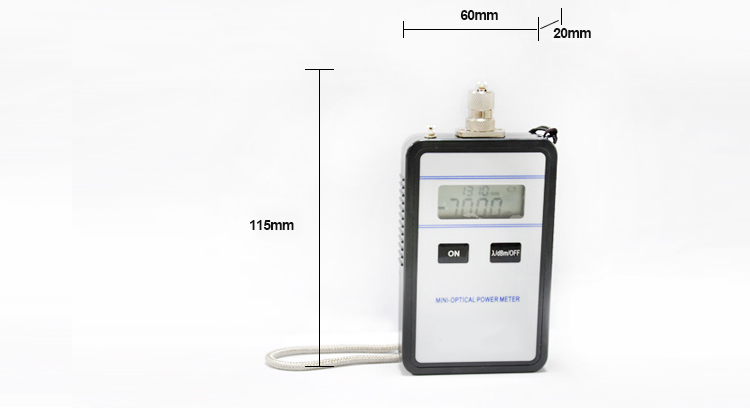

Dimension	115x60x20mm	Weight	105g

Quality Assurance

Excellent quality is the foundation of FLYPRO' s survival and development. Our operation team are experts with many years' experience in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
